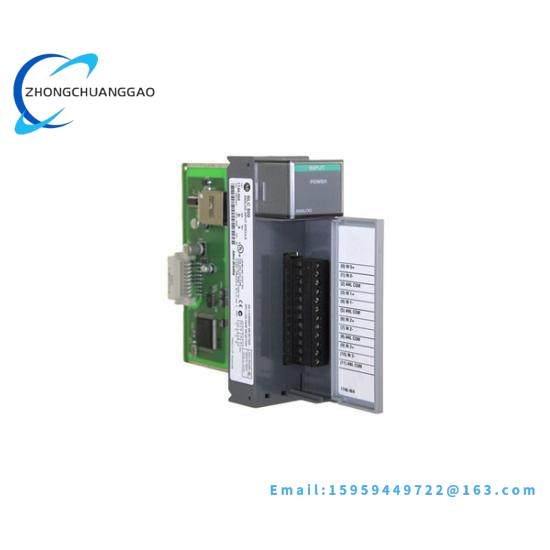

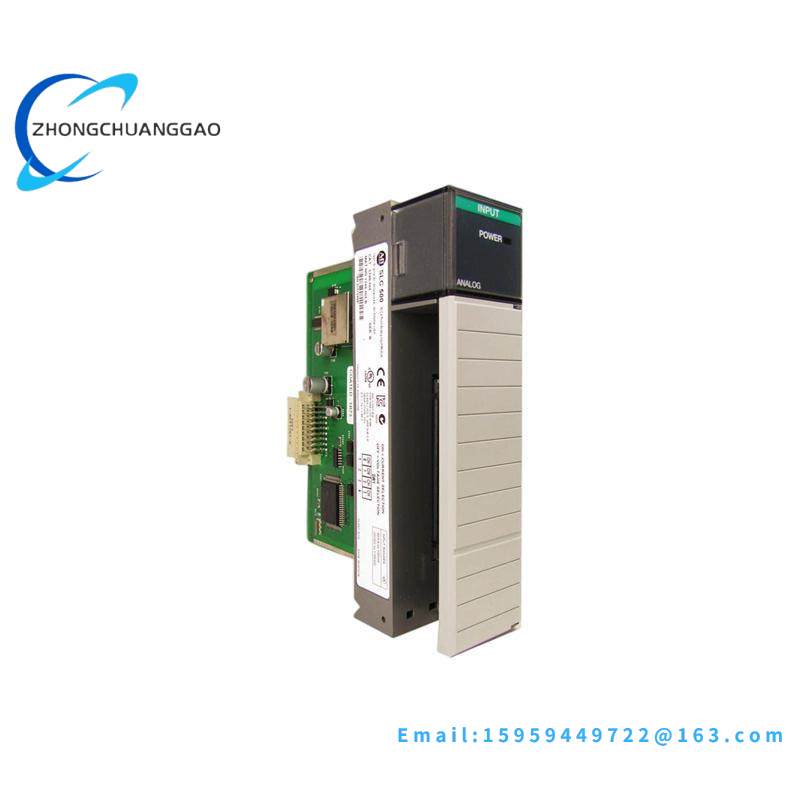

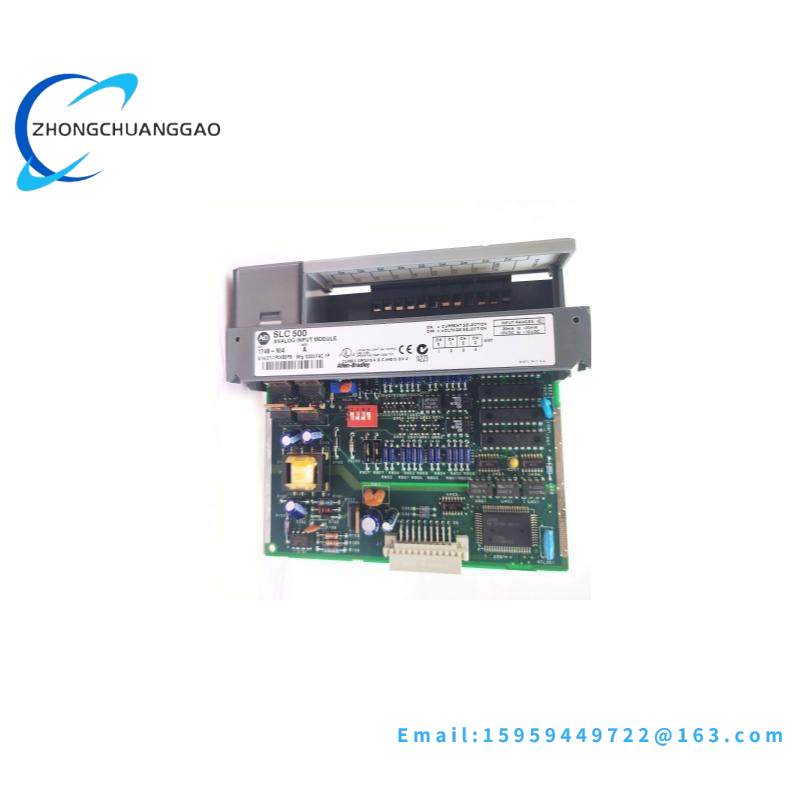

Motorola 1746-NI4 SLC500 Analog Input Module

In stock

The Motorola 1746-NI4 SLC500 Analog Input Module offers high resolution analog input functionality, making it an essential component for automation systems requiring precise data acquisition. It supports 4 channels of common mode voltage ranging from -20 to 20V and absolute input voltage up to ±7.5VDC or 7.5VAC RMS.

Model Type:SLC500

Model Number:1746-NI4

Manufacturer:Allen Bradley

Type:High Resolution

Number Of Channels:4 (Input)

Common Mode Voltage Range:-20 To 20 V

Absolute Input Voltage:Plus/Minus 7.5 VDC Or 7.5 VAC RMS (Maximum)

Input Range:-20 To 20 MA

Absolute Input Current:-30 To 30 MA (Maximum)

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V

Isolation:Backplane: 500 VDC, Enclosure: Open Type

The Motorola 1746-NI4 SLC500 Analog Input Module is an indispensable component for any industrial automation system. Designed by Motorola, this module offers high resolution and reliability. Its 4-channel design allows for simultaneous data collection from multiple sources, making it ideal for complex industrial environments. The common mode voltage range of -20V to 20V ensures accurate readings even under varying conditions. The overvoltage protection feature adds another layer of safety, ensuring stable operation. With a backplane current draw optimized for both 5V and 24V operations, it provides flexibility in installation and integration. The module is also isolated from the backplane, ensuring protection against electrical disturbances.
